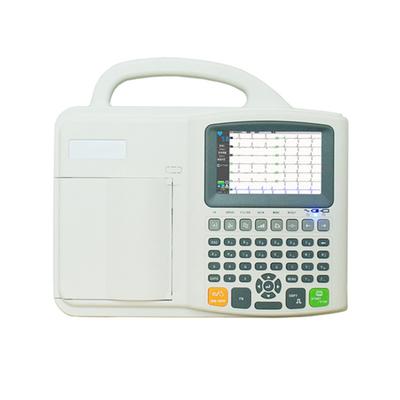

Free Shipping Competitive Price Plastic Digital 6 Six Channels Ecg Machine Full Keyboard 5in LCD 12 Lead EKG Machine

1 Piece
MOQ
$580.00(1 - 4 Pieces) $550.00(>=5 Pieces)
Price
Free Shipping Competitive Price Plastic Digital 6 Six Channels Ecg Machine Full Keyboard 5in LCD 12 Lead EKG Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: NS8160
Power Source: Electric
Warranty: 1 Year
After-sale Service: Online Technical Support
Material: Plastic, Plastic
Shelf Life: 1years
Quality Certification: ISO
Instrument Classification: Class II
Safety Standard: None
Color: White
Size: 5inches
Basic Infomation
Certification: ISO
Model Number: NS8160
Payment & Shipping Terms
Packaging Details: carton
Product Description

Free shipping Competitive Price Digital 6 Six channels Ecg Machine full keyboard 5in lcd 12 lead EKG machine

ORDER TIPS:

*Processing Time:  3-5 days for all orders.
*Shipping Method: We usually use DHL, FEDEX, UPS,etc. The transport time is around 5-10days. If you have any special requirements about the package, customs clearance invoice,welcome to leave messages to us when you place the order.
*Import Duties:  Import duties, taxes and charges are not included in the item price or shipping charges. While we will help buyers to avoid the high import tax if you have special requirements.
*Plug and Voltage: we will send the right plug(US, EU,UK) and voltage(110-240V) according to your country information, welcome to place the order directly.
*Language: All products support English language.

Features:
1. 6 channel ECG machine with interpretation
2. 5.0" color TFT LCD display
3. Simultaneous 12 leads acquisition and 1, 1+1, 3 and 6 channel (Manual/Auto)
recording with high resolution thermal printer
4. Manual/Auto working modes
5. Use digital isolation technology and digital signal processing
6. Baseline stabilization inspection
7. Full alphanumeric silicon keyboard
8. Support U disk storage
Technical Specifications:
Lead: Standard 12 leads
Acquisition: Simultaneous 12leads
A/D Converter: 14bit
Sampling Rate: 1000Hz
Working Mode: Manual/Auto
Interference Filter: AC Filter and EMG Filter
CMMR: ≥100dB (with AC filter)
Input Circuit: Floating, protection circuit against defibrillator effect
Input Circuit Current: ≤0.1μA
Input Impedance: ≥50MΩ
Patient Current Leakage: <10μA
Calibrating Voltage: 1mV±2%
Skin Voltage Tolerance: ≥±500mV
Time Constant: ≥3.2s
Frequency Response: 0.05 Hz~250Hz
Noise Level: <15μVp-p
Sensitivity Threshold: ≤20μV
Signal Channel Interference: ≤0.5mm
Printer: Thermal printer
Paper: 112mmx20m, roll
Page Speed: 6.25, 12.5, 25, 50mm/s (±3%)
Sensitivity Printer: 10mm/mV (AUTO), 2.5, 5, 10, 20mm/mV
CPU: 32 bits
Safe Class: GB9706.1, Class I, Type CF
Power Supply: AC 220V (±10%), 50Hz±1Hz, Power ≤60VA
AC 85~265V, 50/60Hz
DC14.8V (2200mAh), rechargeable Li-ion battery
Dimension: 310mm×270mm×73mm
Weight: 1.75kg (with battery)
Packing information:
6 channel ECG machine main host
ECG accessories(Suction ball, electrode holder, printing paper, power cord, etc)
English user's manual
quality card, etc
