Home /Products/Digital ECG Machine/Home Ecg Machine For Human Price 7 Inch Color LCD Display

Home Ecg Machine For Human Price 7 Inch Color LCD Display

1 Set
MOQ
Home Ecg Machine For Human Price 7 Inch Color LCD Display
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Clinical Examination Aids, Pathological Analysis Equipment
Model Number: RSD33006G, RSD3306G
Instrument Classification: Class II
Monitor Size: 7 Inch Colour LCD
Parameters: ECG
Leads: Standard 12 Leads
Certificate: ISO
Work Modes: Manual, Automatic, Arrythmia
Shipement: DHL,UPS,FEDEX,TNT
Payment: T/T,Western Union,Paypal
Basic Infomation
Certification: ISO
Model Number: RSD33006G, RSD3306G
Payment & Shipping Terms
Packaging Details: Carton
Supply Ability: 1000 Set/Sets per Week
Product Description

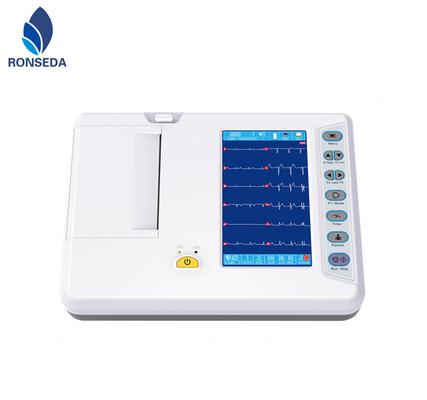

RSD3306G home Ecg Machine For Human price

Product Details

Features:
1.Portable and delicate design, easy to operate
2.Accurate pulse pace identification function
3.High accuracy digital filter, automatic baseline adjustment
4.Working modes: Manual, Automatic, Arrythmia Analysis, Storage
5.112mm, 6 channel format recording, excellent automatic interpretation
6.800x480 graphic 7 inch touch color LCD to simultaneously display ECG information
7.250 patient cases storage ( SD card storage is optional )
8.Detailed patient information record
9.Freeze function
10.Adapt to 110-230V,50/60Hz power supply. Built-in rechargeable Ni-MH battery continuously working for to 4 hours.
11.USB / Rs232 communication ports support USB storage, laser printer printing and PC ECG software ( Optional )
Technical Specifications:
1.Leads: standard 12 leads
2.Lead acquisition:12bit/1000Hz(synchronously 12 leads )
3.Work mode: Manual, Auto, R-R analysis
4.Filter
AC filter: 50Hz / 60Hz
EMG Filter: 25Hz / 45Hz
Anti-Drift Filter: 0.15Hz (Adaptive)
5.CMMR: ≥120dB (with AC filter)
6.Input circuit: floating; protection circuit against defibrillator effect
7.Input Impedance: ≥50MΩ
8.Input circuit current: ≤0.05μA
9.Patient current leakage: <10μA
10.Calibrating voltage: 1mV±2%
11.Voltage tolerance: ≥±500mV
12.Time constant: ≥3.2s
13.Frequency response: 0.05~160Hz(-3db)
14.Noise level: <15μVp-p
15.Inter-channel Interference: ≤0.5mm
16.Sensitivity: Auto,2.5, 5, 10, 20,40mm/mV(±3%)
17.Recording mode : 3ch, 3ch+, 3ch+++, 6ch
.Default Man.Mode is 3ch format
.Default Auto.Mode is 6ch+ format
18.Paper speed: 6.25,12.5, 25, 50mm/s(±3%)
19.Paper : 112 mm X 20 M roll paper
20.Input dynamic range:±10Vpp
21.Sensitivity valve: ≤20μV
22.Display: 800x480 graphic 7 inch color LCD
Standard Configuration:
1.Main unit 1 set
2.Patient cable 1 set
3.Limb electrode 1 set (4pcs)
4.Chest electrodes 1 set (6pcs)
5.Grounding cable 1 pc
6.Paper axis 1 set
7.Thermal paper 1 roll
8.Fuse 2 pcs
9.3-cord power cord 1 pc
10.AC Adaptor 1 pc
11.User manual 1 pc
