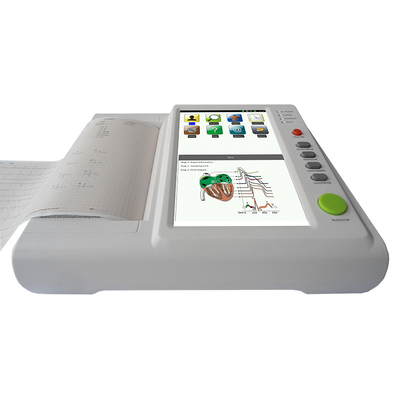

Hot sale 12 digital medical healthcare lead 12 channel ECG machine for hospital

1 Box
MOQ
$720.00(1 - 4 Boxes) $715.00(5 - 49 Boxes) $710.00(50 - 499 Boxes) $705.00(>=500 Boxes)
Price
Hot sale 12 digital medical healthcare lead 12 channel ECG machine for hospital
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: TQ-7012
Power Source: Electricity
Warranty: 1 Year
After-sale Service: Return And Replacement
Material: Plastic
Shelf Life: 1 Years
Quality Certification: MSDS
Instrument Classification: Class II
Safety Standard: GB9706
Product Name: 12 Channel ECG Machine
Usage: Hospital
Function: ECG Recorder
Display: 10.2 Inch Touch Screen
Package: Cartons
Application: Medical Healthcare
MOQ: 1 Set
Size: 37x31x11 Cm
Color: White
Lead: 12 Leads
Basic Infomation
Certification: MSDS
Model Number: TQ-7012
Payment & Shipping Terms
Packaging Details: 1 set/ carton ; packaging size : 45*22*39 cm ; weight : 6.5 kg
Product Description
Product Description
Hot sale 12 lead 12 channel ECG machine digital for hospital
Function Features of ECG Machine：
1. Modern in design, light in weight, compact in size. 2. Simultaneously acquisition of 12 lead, full screen display of 12 channel ECG waveforms. 3. 10.2'' color touch-screen, both push-button and touch operation. 4. Sensitive filters of ADS, HUM, and EMG.
5. Automatic measurement, calculation, analysis, waveform freezing. Auto-analyze and auto-diagnostic can reduce doctor’s burden and improve working efficiency. 6. Automatic adjustment of baseline for optimal recording. 7. Thermal printer with 216mm print paper, synchronization print. It is high resolution thermo sensitive printer and thermal-array (8 dots/mm), you should not adjust anything Frequency Response is up to 150Hz. 8. Lead off & lack off paper detection function. 9. Built-in rechargeable li-ion battery (14.8V/4400mAh), AC/DC power conversion.
10. Adapt to 100-240V, 50/60Hz AC power supply 11. Historical data and patient’s information can be reviewed and printed. 12. Support USB flash disk & SD memory, stored reports can be saved, opened, analyzed in PC via ECG playback software. 13. The machine can store over 500 ECG reports in its built-in flash. 14. Standard RS232 and USB communication interfaces. 15. Connect with PC via ECG workstation software. 16. Sleep mode to save energy and extend LCD life 17. The device can record real time clear and exact 12 channel ECG waveform and remark continually. The remark includes: lead sign, sensitivity, paper speed, filter state, etc. 18. Portable design with hidden handle, convenient to carry. 19. 7 level printing thick can be chosen.
Specification
CMRR
≥ 100dB, with AC Filter
Calibrating voltage
1mV± 3%
Input circuit
Floating
Voltage tolerance
± 500mV
Input circuit current
≤ 0.1µ A
Time constant
> 3.2s
Resolution
12bit/1000Hz
Frequent response
0.05Hz~150Hz
Operation mode
Manual/Auto
Noise level
≤ 15µ Vp-p
Filter
AC. EMG Filter
Threshold
≤ 20µ V
Drift filter
Anti-Drift System
Paper speed
12.5, 25, 50mm/s (± 3%)
Input Impedance
> 50MΩ
Sensitivity
5，10，20mm/mV
Patient current
leakage
< 10µ A
Recorder
High resolution thermal printer
Specification of fuse
T1.6A 250V Ø5×20
Battery
Built-in rechargeable Li-ion battery
14.8V(4000mAh)
Recording paper
Thermal recording
paper
Package
365mm×306mm×109mm
Packing & Delivery
packaging ：

1 set / paper carton
Company Profile
FAQ
Q1: Are you manufacturer? A1: Yes, we are professional manufacturer in home medical devices. Our company specialized in digital Blood pressure monitor, Infrared thermometer, Nebulizer and related BT, Wi-Fi smart wearable home medical devices . Our company located in ShenZhen City, GuangDong. You are always welcome to visit us. Q2: Do you have any factory audits? A2: Yes,now we have passed BSCI RHOS ISO9001, ISO13485, CE0123, etc. Q3: How is the quality of your factory? A3: We have strict process control system for raw material control, process control and finished product quality. The finished products will be inspected in the production line before packaging. Q4: Can you provide OEM or ODM service? A4: Yes, we have strong developing team and R&D team to support OEM and ODM service. The products can be made according to your request. Q5: What’s your OEM/ODM MOQ? A5: 1000pcs. For our first cooperation, your small order is acceptable, but the price is a little highly, you know, the price is based on quantity. Q6: What's your quality guarantee period? A6: 2 Years from shipment. Q7: Do you have in stock? A7: Now we just have small amount in Stock . The sooner you book, the sooner you get the goods. Our capacity about 90,000pcs thermometer in one month .
