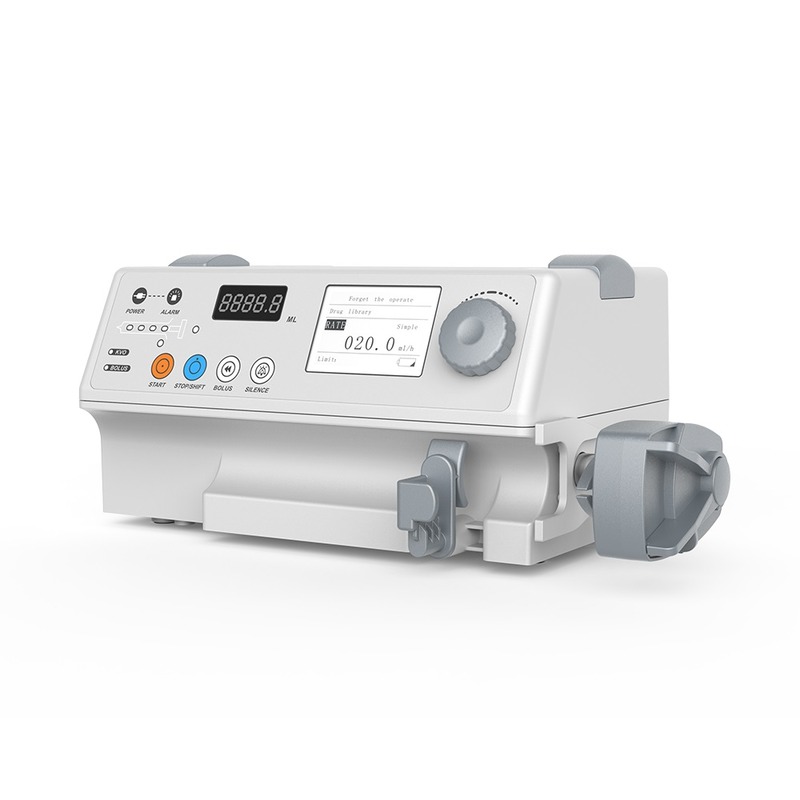

Factory Price Plastic Medical Electric Syringe Pump

1.0 Pieces
MOQ
Factory Price Plastic Medical Electric Syringe Pump
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: HP-SP-810
Power Source: Electric
Warranty: 1 Year
After-sale Service: Online Technical Support
Material: Plastic
Shelf Life: 1years
Quality Certification: Ce
Instrument Classification: Class II
Safety Standard: None
Basic Infomation
Certification: ce
Model Number: HP-SP-810
Payment & Shipping Terms
Packaging Details: As you request
Supply Ability: 500 Piece/Pieces per Week
Product Description
Company Profile
Specification
Model
HP-SP-810
Mechanical Accuracy
Within±2%
Power Consumption
35VA
Fuse
T2AH/250V,2pcs installed
Product Description

Feature:
1.Easy operation
●Brand new appearance provide better experience ●Clearly LCD and digital tube dual display ●Simple rate mode with one key start,easy to operate 2.Precision more safer ●Three occlusion level for option ●Intelligent recognition of the 10ml、20ml、30ml、50ml(60ml) ●syringe,can work with any brand syringe after calibration 3.Intelligent & safe ●Low noise and less vibration are supported by application of motor driver IC imported from German and motor imported from Japan. ●Unique voice,word and light combination alarms,very faster and reliable ●Can be stackable to save space


Syringe Pump
caring your health, responsible for you and your family Rate mode， time volume mode and dose weight mode A: Rate mode：The machine is automatically injected according to the setting of injection speed. B：Timevolumemode：thesystemautomati- cally calculates the speed for injection acc- or ding to the time and volume' s setting， C：Doseweightmode：thesystemautomati- cally calculates the speed for injection， acc- oring to the drug content， patients weight， drug liquid volume and doses setting.


Audible and visual alarm for bubbles， tube blo- cked， door closed， IV set mismatched， battery running out， infusion finish， equipment failure，
abnormally operation， software exception， low battery， forget operation， etc.



Audible and visual alarm for bubbles， tube blo- cked， door closed， IV set mismatched， battery running out， infusion finish， equipment failure， abnormally operation， software exception， low battery， forget operation， etc.




Audible and visual alarm for bubbles， tube blo- cked， door closed， IV set mismatched， battery running out， infusion finish， equipment failure， abnormally operation， software exception， low battery， forget operation， etc.
Specification Infusion Rate 50/60ml Syringe: 0.1ml/h~1500ml/h(0.1ml/h step) 30ml Syringe: 0.1ml/h---900ml/h(0.1ml/h step) 20ml Syringe:0.1ml/h---600ml/h(0.1ml/h step) 10ml Syringe 0.1ml/h---300ml/h(0.1ml/h step) Rate Accuracy Within±3%(after correct calibration) Maximum Stackable: 8pcs Mechanical Accuracy : Within±2% Bolus Rate: 50(60)ml Syringe:1200ml/h 30ml Syringe:720ml/h 20ml Syringe:480ml/h 10ml Syringe:240ml/h Volume Limit 0.1ml---9999.9ml(0.1ml step) Total Injection 0.1ml---9999.9ml(0.1ml step) Maximum Infusion Pressure 150kPa Occlusion High 800mmHg±200mmHg(106.7kPa±26.7kPa) Medium 500mmHg±100mmHg(66.7kPa±13.3kPa) Low 300mmHg±100mmHg(40.7kPa±13.3kPa) Audible and Visible Alarms Occlusion、Equipment failure、Software Exception、Injection finish、Limited finished、Battery running out、Improperly installed、Abnormal operation ect. Power Source 100-240Vac,50/60Hz;Internal rechargeable Li battery,capacity31800mAh,voltage=11.1V,4 hours backup time at the rate of 25ml/h(appointed medium rate in IEC60601-2-24)for the new battery charged for 12 hours.To facilitate the use in some special occasions,the machine's DC outlet can be an external DC 12V 2A standby power supply. KVO Speed 0.1~5m/h(0.1ml/h step) Power Consumption 35VA Fuse T2AH/250V,2pcs installed IP Classification IPX2 Equipment Classification Class I,intermal power supply,Type CF Operation Environment a)Ambient temperature: +5℃~+40℃ b)Relative Humidity:20%~90% c)Atmospheric pressure:86.0kPa~106.0kPa Transport&Storage Condition a)Ambient temperature: -20℃~+55℃ b)Relative Humidity:≤95% c)Atmospheric pressure:50.0kPa~106.0kPa Syringe Compatible with 10ml,20ml,30ml,50/60ml syringe of any brands after correct calibration Dimension 280mm(L)×210mm(W)×130mm(H) Net Weight 2.2kg Package Reference 1pc Carton:3.2KG,36cm(L)×29cm(W)×18cm(H) 2pcs Carton:7.2KG,39cm(L)×38cm(W)×31cm(H) 3pcs Carton:10.7KG,58cm(L)×38cm(W)×31cm(H)
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1: Where is your company?
A: We are located at Changsha, the capital city of Hunan province Q2: Are you a trade company or manufacturer? A： We are the developer of Hunan medical equipment industrial park as well as the president of Hunan Provincial Medical Devices Industrial Association. Haiping Medical is jointly founded by enterprises within Hunan medical industrial park, in order to assist the export business, we act as agent of almost all medical products from our association members and get the best support from no matter manufacturers and our government, we are a powerful and reliable company you can trust. Besides, we produce part of the products we are selling. Q3: How long is your lead time? A: Generally we are able to deliver the products within 1 week after your payment. Even within 3 days, depends on the products and quantity you ordered. Q4: How can you manage your after sales issue? A: We will give online technical support and all parts for free within the warranty and free technical service but only charge the cost of spare parts when it happens out of warranty.
