Home /Products/Medical Syringe Pump/Dual CPU Waterproof Highly Function 3.5" Color Touch Screen 2ml 5ml 10ml 20ml 30ml Syringe Pump

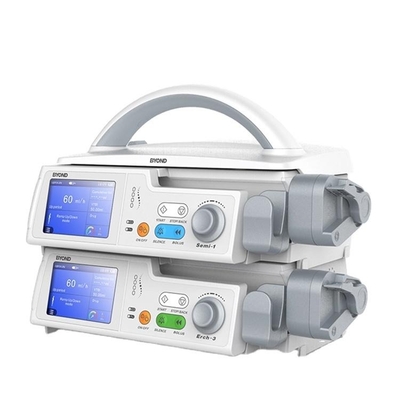

Dual CPU Waterproof Highly Function 3.5" Color Touch Screen 2ml 5ml 10ml 20ml 30ml Syringe Pump

1.0 Pieces
MOQ
Dual CPU Waterproof Highly Function 3.5" Color Touch Screen 2ml 5ml 10ml 20ml 30ml Syringe Pump
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Syringe Pump
Model Number: Sunfusion Erch-3
Instrument Classification: Class II
Warranty: 1 Year
After-sale Service: Online Technical Support
WIFI: Have WIFI Module
Name: Sunfusion Syringe Pump
Model: Sunfusion Erch-3
Feature: Dual CPU
Compatible Dock Station: Sunfusion PI3 + ID3
Infusion Time: 99H:59M:59S
Material: PBT
Accuracy: Less Than 2%
Color: Gray White
Screen: 3.5 Inch Blue LCD ,touch Screen
Basic Infomation
Model Number: Sunfusion Erch-3, Sunfusion Erch-3
Payment & Shipping Terms
Packaging Details: Inner Carton + Master carton
Supply Ability: 1000 Piece/Pieces per Month
Product Description
Product Description

New Modular Design

1.Plug in and modular design, quick combined 2.Independent handle design make quick installation and disassembly 3.PBT plastic material for anti-corrosion 4.Highly waterproof function

User-friendly design.

1.Change infusion rate without pause 2.Intelligent visual and audible alarm system and dynamic alarm guidance 3.Flow compensation to avoid error caused by pipeline fatigue 4.Equipment maintenance cycle alert.

Intuitive and informative user interface

1.3.5 inch colour touch screen and key pad operation be freely choosing 2.Easy operation by UI design 3.CE Certification

Various and intelligent mode

1.Fast start, eliminate the deviation cause by start delay 2.Full-range syringes compatibility, compatible for 2ml, 5ml, 10ml, 20ml,30ml,50(60)ml syringe 3.Various work mode
Specification
Model
Sunfusion syringe pump Erch-3
Screen
3.5 inch Blue LCD,touch screen
WiFi module
YES
Work modes
7 Workmodes: Simple mode, Drop mode,Vol/T mode,Vol/W mode,Micro mode,Sequential mode,Intermittent mode
Syringe set
2ml,5ml,10ml,20ml,30ml,50/60ml univeral syringes
Syringe size detection
Autodetect syringe size
INFUSION rate range
0.01 to 2200 mL/h, with 0.01ml/h increasement
Volume to be infused (VTBI)
0.01-9999.99ml (0.01 ml/step)
Nominal flow rate accuracy
within ± 2% (after calibration)
Infusion time
99H:59M:59S
Purge/Bolus
Bolus, Purge,Anti-bolus,KVO
Obstruct pressure monitoring
DPS,13 levels occlusive detection
Syringe position detection
2 sensors: Plunger detection, flange detection
Alarm
Audible and visible Simulated display alarm reason (Unique) Female voice alarm system (Patent)
CPU
Dual microprocessor controlled
Medicine Library
Drug library with 1000drug names,can be customized by phamarist
History
2000 history recorded
Power
AC: 100-240V 50/60HZ; DC: 15V,1A; Battery: More than 8 hours backup time at the rate of 5 ml/h
Dimention /net weight
300*180*90mm, 2.0kg
Application
Clinical treatments that require precise control of injection rate (or volume) and monitoring of the injection process, such as
clinics, ICUs, operation rooms, emergency rooms, and general wards.
Customer Photos
Product packaging
Exhibition
Company Profile
Founded in 20 0 9, Hunan Beyond Medical Technology is a C E and I S O certified medical device manufacturer with a registered capital over 50 million R M B. Beyond Medical owns workshop over 17 000 m² with more than 4 50 staffs. Adhere to “Quality and Technology Oriented” motto, Beyond Medical has absorbed an elite R & D team of 60 technicians. Over the years, Beyond Medical has attested 4 1 patents and software copyrights. Benefiting from its own S M T workshop, all P C B boards are designed and processed independently on site, therefore Beyond medical can provide customized and qualified products under its own control. It has 7 production lines, manufacturing a wide range of products, including syringe pump, infusion pump, Non-invasive ventilator, High Flow Humidifier, nurse call system and dental equipment. All products are meeting with C E standards, certified by T U V, Germany. Product quality and after-sale service is in our blood, Beyond Medical offers two years warranty and 10 years product support, and we have exported to more than 80 major countries. It has three sales teams to take care of marketing, channel sales and customer services, working languages are English, French, Russian, Spanish and Arabic. Beyond Medical’s corporation culture is “simplicity, efficiency, honest and pleasant”, we are dedicated in offering reliable, affordable products to all partners around the world in long term.
Certifications

FAQ

1.Have you registered the products with the relevant authorities? We have registered in some countries that have large sales marketing. About your country, it depends on your purchasing plan and the order quantities in the local market, we can go with you to register some models that you think will be good market. 2.What is your products' list prices? As it is clear from our product’ Catalogs, it is difficult to provide you with all prices, we suggest that you choose the models you are interested in,then we can provide you the list prices. Put it in your mind that our prices are depend on the quantity. 3.What is your term payment, do you accept L/C? Usually the payment should be paid before delivery 100% in advance. L/C, we will accept if the quantity is big and by sea shipping. 4.What is the difference between the quality of your company's products and those of other companies? We will not say to you that our product qualities are the best in China, but our annual sales show that the qualities have won the confidence of all old clients where our sales change annually. 5.Why you prices are higher than other companies? If you want to compare us with regular companies, then our pries are of course higher than them, because they are not bigger than us ,but if you want to compare us with another famous Chinese companies, our prices are really good with the same quality. 6.How is your services after sales? We have a professional after-sales service team to solve any problem facing clients.
