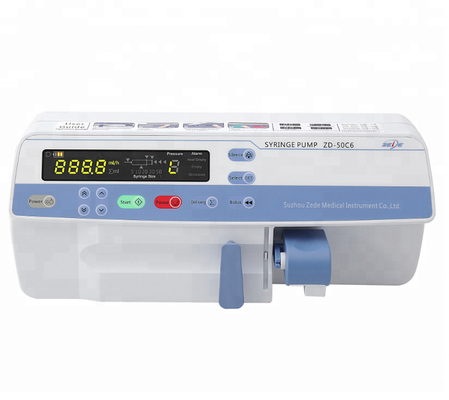

Medical single channel syringe pump for hospital use
Function :
Standby function
Double CPU
Vehicle Power
Power indicator
Inquiry of total infused volume
Bolus release
Automatic syringe size detection
Safety lock for flow rate adjust
|
Syringe pump Parameter |
|||
|
Syringe Size |
5ml, 10ml, 20ml, 30ml, 50ml ( optional: 1/2/3mL ) |
||
|
Flow Rate |
0.0-150ml/h (0.1ml/h increment) 5ml syringe 0.0-300ml/h (0.1ml/h increment) 10ml syringe 0.0-600ml/h (0.1ml/h increment) 20ml syringe 0.0-900ml/h (0.1ml/h increment) 30ml syringe 0.0-1200ml/h (0.1ml/h increment,1ml/h increment if over 1000ml/h) 50ml syringe |
||
|
Precision |
≤±2%(mechanism≤±1%) |
||
|
Inquiry of total volume |
0.0ml-9999ml(0.1ml increment, 1ml increment if over 1000ml) |
||
|
VTBI |
0.0ml-9999ml(0.1ml increment, 1ml increment if over 1000ml) |
||
|
Occlusion Value |
High(H):800±200mmHg (106.7±26.7kPa) Centre(C):500±100mmHg (66.7±13.3kPa) Low(L):300±100mmHg (40.7±13.3kPa) |
||
|
Alarm |
Remind alarm,Occlusion alarm,Near empty alarm, Empty alarm, syringe barrel unlock alarm, syringe plunger disengage alarm, syringe flange disengage alarm, AC power failure, Low battery alarm, Battery empty alarm, VTBI finish reminder, infusion tube disconnect(option) |
||
|
Power |
AC:100V-240V±10%, 50Hz-60Hz±1Hz Built-in Battery:DC15V Ni-MH battery. Built-in battery can run for 10 hours at 5ml/h. (It can be replaced by lithium ion battery pack if necessary.) DC:DC15V,vehicle power |
||
|
Running Environment |
Temperature:+5℃-+40℃ Relative Humidity:20%-90% Atmosphere Pressure:860hPa-1060hPa |
||
|
Transport And Storage Environment |
Temperature:-20℃-+55℃ Relative Humidity:10%-93% Atmosphere Pressure:500hPa-1060hPa |
||
|
Electric Safety Classification |
Class I, CF type,Built-in battery,Continuous operation equipment |
||
|
Water Proof Level |
IPX4 |
||
|
Net Weight |
2.2kg(include fastener) |
||
|
Dimension |
320mm(W)× 132mm(H)× 138mm(D) |
||
|
Function |
|
||
|
KVO rate Safety lock for PURGE/BOLUS All brands of syringes are available Preset occlusion detection pressure level Preset Volume To Be Infused Varied video and audio alarm RS232 interface 4500 history log |
Standby function Safety lock for flow rate adjust Automatic syringe size detection Bolus release Inquiry of total infused volume Power indicator Vehicle Power Double CPU |
|
|
Warranty rules :
1. Three years warranty for free;
2. Offer spare parts for free, during the warranty period when you have RMA problem.
1. Could you tell us more details about your products ?
RE:
1. Product: single Channel syringe pump with handle/ holder
2. warranty: 3years for free
3. Delivery date: within 3 working days for samples. within 15 working days for general orders.
4. Delivery fee: By express, by air, by sea
5. Accuracy: less than 2%
6. Endurance of battery: 10 hours
7. limiting volume: 0.0--9999.9ml
8. Available Syringe size: 5/10/20/30/50ml (1/2/3ml is optional)
2. What's your products feature/ specialty?
RE:
Built-in handle,
Ordinary C type fastener,
Prevent blood backflow technology
Suitable for all syringe brands
3 years warranty
High accuracy: 2%
