5ml portable iv led screen medical syringe pump oem syringe pump for hospital

1.0 Units
MOQ
5ml portable iv led screen medical syringe pump oem syringe pump for hospital
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: HSP-3
Power Source: Electricity
Warranty: 1 Year
After-sale Service: Online Technical Support
Material: Plastic
Shelf Life: 1years
Quality Certification: Ce
Instrument Classification: Class II
Safety Standard: None
Applicable Syringes: 5ml,10ml,20ml,30ml,50ml,60ml Of Any Standard
Accuracy: +/- 2% With Correct Calibration
Total Volume Range: 0.1-9999.9ml (0.1 Ml Step)
Sequential Mode: Available
KVO Rate: 0.1~5.0 Ml/h, Programmable And Adjustable
Basic Infomation
Certification: ce
Model Number: HSP-3
Payment & Shipping Terms
Packaging Details: Wooden case
Supply Ability: 1000 Unit/Units per Month
Product Description
Products Description

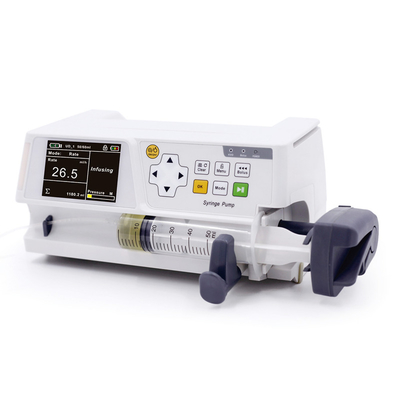

Medical Equipment HSP-3 Portable Syringe Pump
Features
• Open system: Accepts all standard syringes of 5ml, 10ml, 20ml, 30ml, 50ml, 60ml
• Large COLOR TFT display with adjustable brightness.
• Manual and Automatic Bolus function.
• Vertical & Horizontal mounting.
• Anti-bolus system to reduce significantly after occlusion sudden release.
• DPS Occlusion Pressure display.
• 2000 events stored can be checked and downloaded.
• Five work modes: Rate Mode, Time Mode, Dose Mode, Sequential Mode and Drug Library Mode.
• Drug library with 1030 injection records (Optional).
• Identify the specifications of syringe automatically.
• Audible and visual alarm: Syringe Holder Loose, Syringe Plunger Disengagement, Syringe Flange Insertion Error, Syringe Not Calibrated, Occlusion, Syringe Empty, Rate Abnormal, Battery Empty, No Battery, Key Holding During Infusion, Key Holding During Pause, Infusion Complete, Syringe Near Empty,No Action, Battery Low, Out of Flow Range
• Freely Stackable: Users can freely stack one syringe pump onto another to provide multiple Solutions
• Automatically record of infusion.
• Visual and audible alarm system and accurate injection rate make the injection process safer and reliable.
• KVO and Bolus functions.
• Change the flow rate without stop during infusion.
• 12 Hours Internal Battery continuous operation.
• Accurate and sensitive pressure sensor detects occlusion pressure accurately.
• Excellent injection operation. The accuracy will be ensured even at small-volume injection.



Technical Specifications
Applicable syringes
5ml,10ml,20ml,30ml,50ml,60ml of any standard
Accuracy
+/- 2% with correct calibration
Rate mode
50ml(60ml):0.1ml/h-2000.0ml/h (0.1ml/h or 1ml/h step)
30ml:0.1ml/h-1200.0ml/h (0.1ml/h or 1ml/h step)
20ml:0.1ml/h-800.0ml/h (0.1ml/h or 1ml/h step)
10ml:0.1ml/h-400.0ml/h (0.1ml/h or 1ml/h step)
5ml: 0.1~200ml/h (0.1ml/h or 1ml/h step)
(Programmable 0.01ml/h~9999.9ml/h)
Time Mode
SOL. VOL:0.1-9999.9ml (0.1ml step)
TIME:00:01-99:59min (1min step)
Dose Mode
Volume:0.1-999.9ml(0.1ml step)
DRUG MASS:0.1-999.9mg 0.1mg step)
DOSE:0.001-9999ug/kg/min(0.001ug/kg/min step)
WEIGHT:0.1-300kg(0.1kg the least step)
Total Volume Range
0.1-9999.9ml (0.1 ml step)
Drug library Mode
10 categories of drugs, amounts to 1030 kinds of drug names, 17kinds of dose units, such as ug/kg/min, mg/kg/min, etc.
Makes drug dispensing more convenient and safer.
Sequential mode
Available
Purge Rate
50ml(60ml): 1500.0ml/h
30ml: 1200.0ml/h
20ml: 800.0ml/h
10ml: 400.0ml/h
5ml: 200ml/h
Programmable and adjustable
KVO Rate
0.1~5.0 ml/h, Programmable and adjustable
DPS dynamic pressure
Three levels setting LOW (60(±15)kPa), MEDIUM (90(±15)kPa) or HIGH (120(±15) kPa)
Alarms
Syringe Holder Loose ,Syringe Plunger Disengagement, Syringe Flange Insertion Error, Syringe Not Calibrated, Occlusion, Syringe
Empty, Rate Abnormal, Battery Empty, No Battery, Infusion Complete, Syringe Near Empty, No Action, Battery LowThree levels of
alarm volume LOW, MEDIUM or HIGH
Bolus Rate
5ml: 0.1~200ml/h,10ml:0.1-400ml/h,20ml:0.1-800ml/h,
30ml:0.1-1200ml/h,50ml(60ml):0.1-2000ml/h
Programmable and adjustable, Automatic/Manual bolus available
Bolus Volume
Range: 1.0~50.0ml, (0.1ml step)
Interface
RS-232
Interface
RS-232
Brightness
1~10 levels can be selected
History records
2000 events stored can be checked and downloaded
Protection Class
Class I, Type CF,IP44
FAQ
1.What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.

2.What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. But if the machine is damaged due to rough handling during the transportation, we are free of any responsibility, but we will still provide help to the buyer issue claims against the shipping company or insurance company, thus all the spare parts or expenses should be borne by buyer.

3.What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.

4.Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.

5.What is payment terms?
T/T in advance, L/C, Western Union, PayPal, MoneyGram.

6.Which shipping company usually using?
MAERSK-LINE, PIL, cosco, SAFMARINE, MARUBA, APL, CMA, CSAV, K-LINE, MSC, NYK, AND DHL, EMS, TNT, UPS FOR COURIER, buyer's option will be our priority, we will give suggestion according to the schedule and services.
